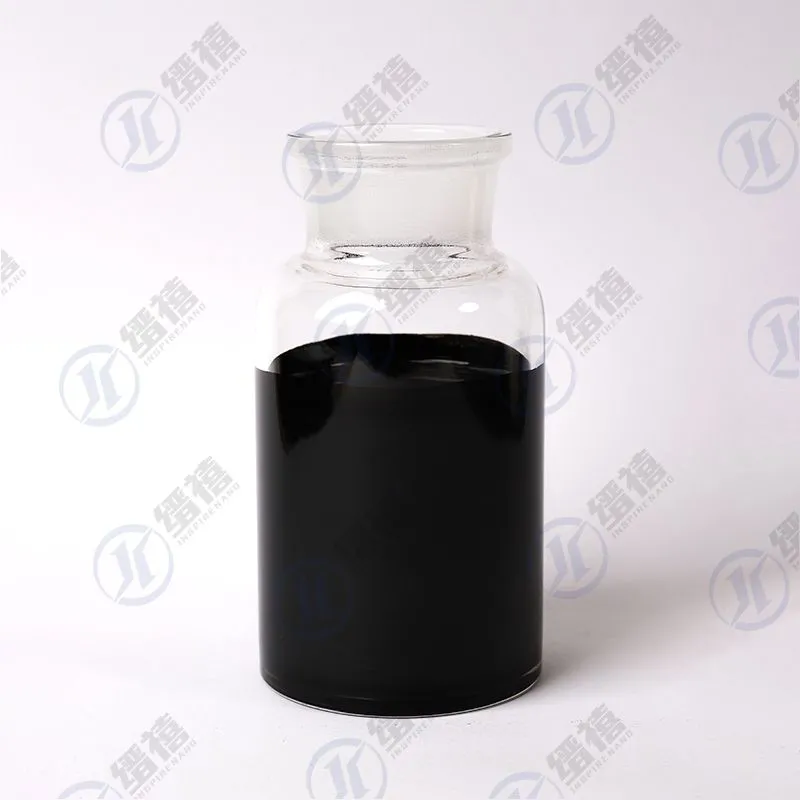

N03 is a carbon nanotube, carbon black compound conductive slurry, high solid content, low viscosity, can be applied to lithium-ion conductive agent, can be used in high-end 3C digital, power or energy storage batteries. It has good electrical conductivity, improves battery conductivity, rate performance and cycling performance, and has good processing and dispersion performance.
Working Mechanism
When used as a conductive agent in the application of batteries, the aspect ratio is relatively large, N03:the number of carbon tubes per unit is more, the point linear contact with the active material is more dense, and the high conductivity network effectively connects the active material, reduces the impedance, and improves the overall conductivity. In addition, carbon nanotubes with larger aspect ratios have a larger specific surface area and are added in less quantities than conventional conductive agents.
Technical Specifications
| Technical Specifications of Conductive slurry N03 series | ||
| physical property | Unit | Numerical value |
| Solid content | % | 11.66±0.50 |
| Conductive agent content | % | 10.66±0.30 |
| Dispersant content | % | 1.00±0.20 |
| Viscosity | mPa.s | ≤5000 |
| Metal impurity content | ppm | Fe≤20； Ni≤10； Co≤10 |
Product Advantages
1. The array carbon tube is compounded with carbon black, which has better orientation and good conductivity;
2. High solids content, low impurity content, low viscosity and good stability;
3. The compound slurry reduces the feeding process and improves the processing efficiency;
4. Reduce costs.
Related Products
WL-2010 is a negative electrode dispersant with a small amount of addition, which can improve the viscosity and stability of the negative electrode slurry, increase the solid content of the slurry, and improve processing performance.
JX-T-1 is a coarse tube carbon nanotube powder with a catalytic system of Ni series, which can be applied in the fields of battery materials and conductive plastics.
VL-3336 is a multifunctional anti cracking agent for positive electrodes, with a small addition amount (within 0.2%).
N05 is an oligowall carbon nanotube compound slurry with high solid content and moderate viscosity, which is used as a conductive agent for lithium-ion batteries
VL-3240 is a small molecule non residual cathode anti cracking agent with a small adding amount (within 0.2%).
